sensor_reading.h File Reference

This is a library for sensor data configurations and collection. This is manages the sensor type, pin configuration, and reading of sensor data. More...

#include "sensor_id.h"
#include <zephyr/drivers/gpio.h>
#include <zephyr/drivers/adc.h>

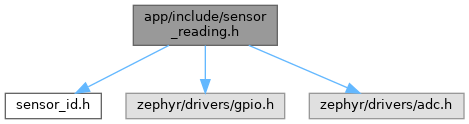

Include dependency graph for sensor_reading.h:

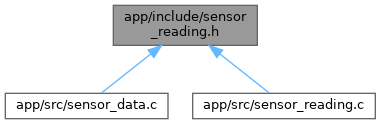

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sensor_reading_config_t
	Sensor data pin configuration. More...

Macros
#define	VOLTAGE_READ_DIVIDER_HIGH   100
#define	VOLTAGE_READ_DIVIDER_LOW   13
#define	CURRENT_READ_RESISTOR   50
#define	PULSE_DEBOUNCE_MS   50

Functions
int	sensor_reading_setup (sensor_reading_config_t *config, enum sensor_types sensor_type)
	Setup sensor for sensor_type with hardware configuration.
enum sensor_types	get_sensor_reading_setup (sensor_reading_config_t *config)
	Get the sensor type set for a hardware configuration.
float	get_sensor_voltage_reading (sensor_reading_config_t *config)
	Get the sensor voltage reading for a given sensor, takes into account the VOLTAGE_READ_DIVIDER_HIGH and VOLTAGE_READ_DIVIDER_LOW values.
float	get_sensor_current_reading (sensor_reading_config_t *config)
	Get the sensor current reading for a given sensor in milliamperes, takes into account the CURRENT_READ_RESISTOR.
int	get_sensor_pulse_count (sensor_reading_config_t *config)
	Get the current number of pulses captured on since initialization or last reset.
int	reset_sensor_pulse_count (sensor_reading_config_t *config)
	Reset the pulse count for a given sensor to 0.

Detailed Description

This is a library for sensor data configurations and collection. This is manages the sensor type, pin configuration, and reading of sensor data.

Author

Tyler Garcia

Version

0.1

Date

2025-04-28

Copyright

Copyright (c) 2025

Function Documentation

get_sensor_current_reading()

float get_sensor_current_reading

(

sensor_reading_config_t *

config

)

Get the sensor current reading for a given sensor in milliamperes, takes into account the CURRENT_READ_RESISTOR.

Parameters

config

sensor hardware configuration

Returns

float current on sensor current_read pin in mA, -1 if sensor is not configured to CURRENT_SENSOR

get_sensor_pulse_count()

int get_sensor_pulse_count

(

sensor_reading_config_t *

config

)

Get the current number of pulses captured on since initialization or last reset.

Parameters

config

sensor hardware configuration

Returns

int number of pulses, -1 if sensor is not configured to PULSE_SENSOR

get_sensor_reading_setup()

enum sensor_types get_sensor_reading_setup

(

sensor_reading_config_t *

config

)

Get the sensor type set for a hardware configuration.

Parameters

config

sensor hardware configuration

Returns

enum sensor_types current sensor type set

get_sensor_voltage_reading()

float get_sensor_voltage_reading

(

sensor_reading_config_t *

config

)

Get the sensor voltage reading for a given sensor, takes into account the VOLTAGE_READ_DIVIDER_HIGH and VOLTAGE_READ_DIVIDER_LOW values.

Parameters

config

sensor hardware configuration

Returns

float voltage on sensor voltage_read pin, -1 if sensor is not configured to VOLTAGE_SENSOR

reset_sensor_pulse_count()

int reset_sensor_pulse_count

(

sensor_reading_config_t *

config

)

Reset the pulse count for a given sensor to 0.

Parameters

config

sensor hardware configuration

Returns

int 0 if successful, -1 if sensor is not configured to PULSE_SENSOR

sensor_reading_setup()

int sensor_reading_setup	(	sensor_reading_config_t *	config,
		enum sensor_types	sensor_type
	)

Setup sensor for sensor_type with hardware configuration.

Parameters

config	sensor hardware configuration
sensor_type	type of sensor to be set to

Returns

int 0 if successful, < 0 otherwise
