sensor_nvs.c File Reference

This is a library to keep track of sensor information and configurations that are stored in the non-volatile storage (NVS) of the device. nrf52840_partition gives 32KB for storage_partition. More...

#include "sensor_nvs.h"
#include <zephyr/fs/nvs.h>
#include <zephyr/logging/log.h>
#include <zephyr/storage/flash_map.h>
#include <zephyr/drivers/flash.h>

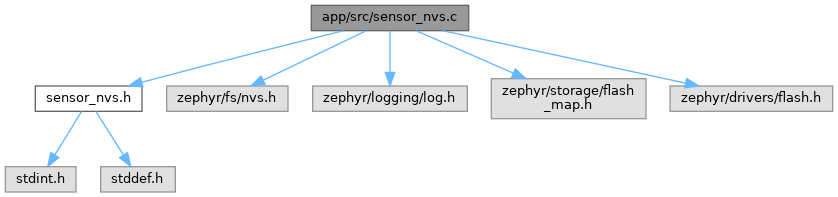

Include dependency graph for sensor_nvs.c:

Macros
#define	NVS_PARTITION   storage_partition
#define	NVS_PARTITION_DEVICE   FIXED_PARTITION_DEVICE(NVS_PARTITION)
#define	NVS_PARTITION_OFFSET   FIXED_PARTITION_OFFSET(NVS_PARTITION)

Functions
	LOG_MODULE_REGISTER (SENSOR_NVS, LOG_LEVEL_INF)
int	sensor_nvs_setup (uint8_t nvs_address_count)
	Setup NVS for use. An enum list of addresses should be defined in application code, with the maximum number of addresses being defined. This must be called before any other NVS functions. This mounts the NVS partition and initializes it. The nvs_address_count will be used to know when the address is out of bounds.
int	sensor_nvs_write (uint8_t address, const void *data, size_t length)
	Write given data buffer to NVS with given address.
int	sensor_nvs_read (uint8_t address, void *data, size_t length)
	Read data from NVS with given address, data is written to the provided buffer.
int	sensor_nvs_delete (uint8_t address)
	Delete data from NVS with given address.
int	sensor_nvs_clear (void)
	Clear all data from NVS. NVS must be setup again after clearing.

Detailed Description

This is a library to keep track of sensor information and configurations that are stored in the non-volatile storage (NVS) of the device. nrf52840_partition gives 32KB for storage_partition.

Author

Tyler Garcia

Version

0.1

Date

2025-05-08

Copyright

Copyright (c) 2025

Function Documentation

sensor_nvs_clear()

int sensor_nvs_clear

(

void

)

Clear all data from NVS. NVS must be setup again after clearing.

Returns

int 0 on success, -ERRNO errno code if error

sensor_nvs_delete()

int sensor_nvs_delete

(

uint8_t

address

)

Delete data from NVS with given address.

Parameters

address

address of NVS to delete

Returns

int 0 on success, -1 on error

sensor_nvs_read()

int sensor_nvs_read	(	uint8_t	address,
		void *	data,
		size_t	length
	)

Read data from NVS with given address, data is written to the provided buffer.

Parameters

address	address of NVS to read from
data	pointer to data buffer to write
length	length of data to read

Returns

int 0 on success, -1 on error

sensor_nvs_setup()

int sensor_nvs_setup

(

uint8_t

nvs_address_count

)

Setup NVS for use. An enum list of addresses should be defined in application code, with the maximum number of addresses being defined. This must be called before any other NVS functions. This mounts the NVS partition and initializes it. The nvs_address_count will be used to know when the address is out of bounds.

Parameters

nvs_address_count

the number of addresses to use in the NVS partition

Returns

int 0 on success, -1 on error

sensor_nvs_write()

int sensor_nvs_write	(	uint8_t	address,
		const void *	data,
		size_t	length
	)

Write given data buffer to NVS with given address.

Parameters

address	address of NVS to write to
data	pointer to data buffer to write
length	length of data to write

Returns

int 0 on success, -1 on error
