This is a library to handle the LoRaWAN functionality for the sensor. More...
#include <zephyr/lorawan/lorawan.h>#include <stdint.h>#include <zephyr/device.h>

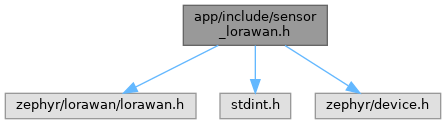

Include dependency graph for sensor_lorawan.h:

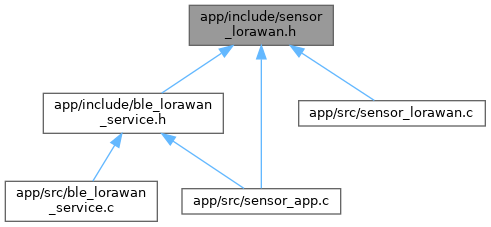

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | lorawan_setup_t |
| Structure to hold the LoRaWAN setup, used to join the network. More... | |
| struct | lorawan_data_t |
| Structure to hold the LoRaWAN data to send. More... | |
Macros | |
| #define | MAX_LORAWAN_PAYLOAD 255 |
Functions | |
| int | is_lorawan_configured (lorawan_setup_t *setup) |
| Check if the LoRaWAN Network is configured with valid lorawan keys. | |
| void | sensor_lorawan_log_network_config (lorawan_setup_t *setup) |
| Print the LoRaWAN Network dev_eui, join_eui, and app_key for a given lorawan_setup_t configuration. | |
| int | sensor_lorawan_setup (lorawan_setup_t *setup) |
| Setup LoRaWAN Network with a given lorawan_setup_t configuration. | |
| int | sensor_lorawan_send_data (lorawan_data_t *data) |
| Send data to the LoRaWAN Network. | |
| int | is_lorawan_connected (void) |
| Check if the LoRaWAN Network is connected. | |
Detailed Description
This is a library to handle the LoRaWAN functionality for the sensor.
- Version
- 0.1
- Date
- 2025-05-01
- Copyright
- Copyright (c) 2025
Function Documentation
◆ is_lorawan_configured()
| int is_lorawan_configured | ( | lorawan_setup_t * | setup | ) |
Check if the LoRaWAN Network is configured with valid lorawan keys.
- Parameters
-
setup setup configuration used to join lorawan network
- Returns
- int 1 if configured, 0 if not configured
◆ is_lorawan_connected()
| int is_lorawan_connected | ( | void | ) |
Check if the LoRaWAN Network is connected.
- Returns
- int 1 if connected, 0 if not connected
◆ sensor_lorawan_log_network_config()
| void sensor_lorawan_log_network_config | ( | lorawan_setup_t * | setup | ) |
Print the LoRaWAN Network dev_eui, join_eui, and app_key for a given lorawan_setup_t configuration.
- Parameters
-
setup setup configuration used to join lorawan network
◆ sensor_lorawan_send_data()
| int sensor_lorawan_send_data | ( | lorawan_data_t * | data | ) |
Send data to the LoRaWAN Network.
- Parameters
-
data lorawan_data_t structure containing the data to send.
- Returns
- int 0 if successful, -1 if failed.
◆ sensor_lorawan_setup()
| int sensor_lorawan_setup | ( | lorawan_setup_t * | setup | ) |
Setup LoRaWAN Network with a given lorawan_setup_t configuration.
- Parameters
-
setup setup configuration used to join lorawan network
- Returns
- int 0 if successful connection, < 0 if unsuccessful
