sensor_data.h File Reference

This is a library to keep track of sensor data, using the sensor_reading library to collect data from the sensors. This library will also handle the data storage and retrieval. More...

#include "sensor_id.h"
#include <stddef.h>
#include <stdint.h>
#include <zephyr/sys/ring_buffer.h>

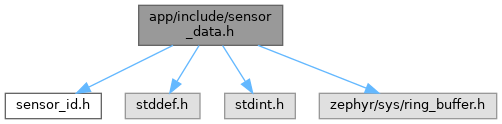

Include dependency graph for sensor_data.h:

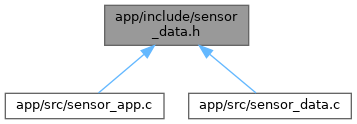

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sensor_data_t
	Structure for the sensor data. This is used to store the sensor data and timestamp for each sensor. More...

Macros
#define	MAX_DATA_BUFFER_SIZE   100

Enumerations
enum	sensor_data_type {   DATA_TYPE_INT , DATA_TYPE_UINT8 , DATA_TYPE_UINT16 , DATA_TYPE_UINT32 ,   DATA_TYPE_FLOAT , DATA_TYPE_LIMIT }
	Types of data that can be stored in the sensor data buffer. Currently unused, plans to keep it for future use to potentially store in sensor_data_t struct.

Functions
int	sensor_data_setup (sensor_data_t *sensor_data, enum sensor_types type, enum sensor_voltage voltage_enum)
	Setup the sensor data. If the sensor chosen has continuous power, the power will be turned on when the sensor is setup. If not the power will be turned on only when the data is read. PULSE_SENSORs use continuous power. To disable a sensor, set the type to NULL_SENSOR. This is important when using a sensor with continuous power, as it will turn off the power when the sensor is deinitialized.
int	sensor_data_read (sensor_data_t *sensor_data, int timestamp)
	Read the sensor data, and store the data in the buffer. It adds a tinestamp to the data buffer.
int	sensor_data_print_data (sensor_data_t *sensor_data)
	Print the sensor data from data and timestamp ring buffers. Displaying it from the oldest to newest.
int	sensor_data_clear (sensor_data_t *sensor_data)
	Clear the sensor data.
int	sensor_data_format_for_lorawan (sensor_data_t *sensor_data, uint8_t *data, uint8_t *data_len)
	Format the sensor data for LoRaWAN, this breaks the data into a uint8_t array.

Detailed Description

This is a library to keep track of sensor data, using the sensor_reading library to collect data from the sensors. This library will also handle the data storage and retrieval.

Author

Tyler Garcia

Version

0.1

Date

2025-05-14

Copyright

Copyright (c) 2025

Function Documentation

sensor_data_clear()

int sensor_data_clear

(

sensor_data_t *

sensor_data

)

Clear the sensor data.

Parameters

sensor_data

The sensor data to clear.

sensor_data_format_for_lorawan()

int sensor_data_format_for_lorawan	(	sensor_data_t *	sensor_data,
		uint8_t *	data,
		uint8_t *	data_len
	)

Format the sensor data for LoRaWAN, this breaks the data into a uint8_t array.

Parameters

sensor_data	The sensor data to format.
data	The data to format.
data_len	The length of the data.

Returns

int 0 if successful, -1 if failed.

sensor_data_print_data()

int sensor_data_print_data

(

sensor_data_t *

sensor_data

)

Print the sensor data from data and timestamp ring buffers. Displaying it from the oldest to newest.

Parameters

sensor_data

The sensor data to print.

sensor_data_read()

int sensor_data_read	(	sensor_data_t *	sensor_data,
		int	timestamp
	)

Read the sensor data, and store the data in the buffer. It adds a tinestamp to the data buffer.

Parameters

sensor_data	The sensor data to read.
timestamp	The timestamp to add to the data buffer.

Returns

int 0 if successful, -1 if failed.

sensor_data_setup()

int sensor_data_setup	(	sensor_data_t *	sensor_data,
		enum sensor_types	type,
		enum sensor_voltage	voltage_enum
	)

Setup the sensor data. If the sensor chosen has continuous power, the power will be turned on when the sensor is setup. If not the power will be turned on only when the data is read. PULSE_SENSORs use continuous power. To disable a sensor, set the type to NULL_SENSOR. This is important when using a sensor with continuous power, as it will turn off the power when the sensor is deinitialized.

Parameters

sensor_data	The sensor data to setup holding the sensor id and power id.
type	The type of sensor to setup.
voltage_enum	The voltage to use for the sensor.

Returns

int 0 if successful, -1 if failed.
