A library to manage sensor applications. Working between power configurations, data configurations, and scheduling for sensor reading. As well as LoRaWAN initialization, scheduling, and data transmission. This library also handles the BLE services for the device, sensor, and LoRaWAN. More...

#include "sensor_id.h"
#include <stdint.h>

Include dependency graph for sensor_app.h:

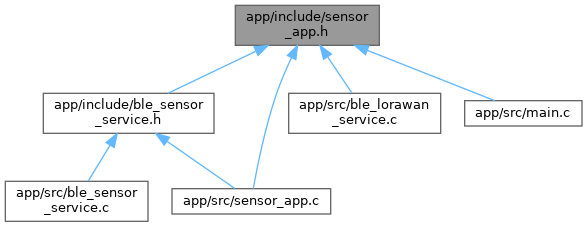

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sensor_app_config_t
	Structure for the sensor app configuration. This is used to store the sensor configuration and state. More...

Macros
#define	SENSOR_VOLTAGE_NAME_LENGTH 20

#define	SENSOR_TYPE_NAME_LENGTH 20

Enumerations
enum	sensor_app_state { SENSOR_APP_STATE_CONFIGURATION , SENSOR_APP_STATE_RUNNING , SENSOR_APP_STATE_ERROR }
	Enum for the sensor app state. This is used to track the state of the sensor app.

enum	sensor_nvs_address { SENSOR_NVS_ADDRESS_DEVICE_NAME , SENSOR_NVS_ADDRESS_APP_STATE , SENSOR_NVS_ADDRESS_LORAWAN_ENABLED , SENSOR_NVS_ADDRESS_LORAWAN_FREQUENCY , SENSOR_NVS_ADDRESS_LORAWAN_DEV_EUI , SENSOR_NVS_ADDRESS_LORAWAN_JOIN_EUI , SENSOR_NVS_ADDRESS_LORAWAN_APP_KEY , SENSOR_NVS_ADDRESS_LORAWAN_DEV_NONCE , SENSOR_NVS_ADDRESS_LORAWAN_JOIN_ATTEMPTS , SENSOR_NVS_ADDRESS_LORAWAN_SEND_ATTEMPTS , SENSOR_NVS_ADDRESS_SENSOR_1_ENABLED , SENSOR_NVS_ADDRESS_SENSOR_1_POWER , SENSOR_NVS_ADDRESS_SENSOR_1_TYPE , SENSOR_NVS_ADDRESS_SENSOR_1_FREQUENCY , SENSOR_NVS_ADDRESS_SENSOR_2_ENABLED , SENSOR_NVS_ADDRESS_SENSOR_2_POWER , SENSOR_NVS_ADDRESS_SENSOR_2_TYPE , SENSOR_NVS_ADDRESS_SENSOR_2_FREQUENCY , SENSOR_NVS_ADDRESS_LIMIT }
	Enum for the NVS addresses for the sensor app. This is used to store the sensor app configuration in NVS.

Functions
int	sensor_app_init (sensor_app_config_t *config)
	Initialize the sensor app, handle anything that needs to be initialized for the app such as timers, nvs, etc.

int	sensor_app_configuration_state (void)
	Execute the sensor app configuration state.

int	sensor_app_running_state (void)
	Execute the sensor app running state.

int	sensor_app_error_state (void)
	Execute the sensor app error state.

int	sensor_app_ble_start (void)
	Start the BLE advertising and services.

Detailed Description

A library to manage sensor applications. Working between power configurations, data configurations, and scheduling for sensor reading. As well as LoRaWAN initialization, scheduling, and data transmission. This library also handles the BLE services for the device, sensor, and LoRaWAN.

Author: Tyler Garcia

Version: 0.1

Date: 2025-04-28

Copyright: Copyright (c) 2025

Function Documentation

◆ sensor_app_ble_start()

int sensor_app_ble_start ( void )

Start the BLE advertising and services.

Returns: int 0 on success, -1 on failure

◆ sensor_app_configuration_state()

int sensor_app_configuration_state ( void )

Execute the sensor app configuration state.

Returns: int 0 on success, -1 on failure

◆ sensor_app_error_state()

int sensor_app_error_state ( void )

Execute the sensor app error state.

Returns: int 0 on success, -1 on failure

◆ sensor_app_init()

int sensor_app_init ( sensor_app_config_t * config )

Initialize the sensor app, handle anything that needs to be initialized for the app such as timers, nvs, etc.

Returns: int 0 on success, -1 on failure

◆ sensor_app_running_state()

int sensor_app_running_state ( void )

Execute the sensor app running state.

Returns: int 0 on success, -1 on failure
