This is a library to handle the BLE services device configuration. It displays the device name, hardware version, firmware version, and battery/charger information. More...

#include "sensor_pmic.h"

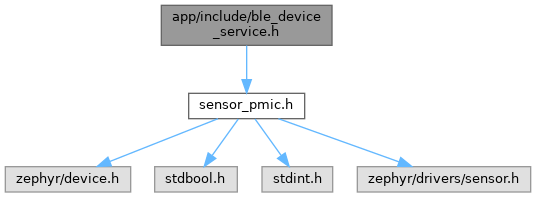

Include dependency graph for ble_device_service.h:

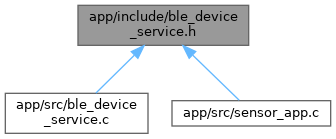

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	BT_UUID_DEVICE_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c90)

#define	BT_UUID_DEVICE_NAME_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c91)

#define	BT_UUID_DEVICE_HARDWARE_VERSION_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c92)

#define	BT_UUID_DEVICE_FIRMWARE_VERSION_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c93)

#define	BT_UUID_DEVICE_BATTERY_PERCENT_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c94)

#define	BT_UUID_DEVICE_BATTERY_VOLTAGE_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c95)

#define	BT_UUID_DEVICE_BATTERY_CURRENT_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c96)

#define	BT_UUID_DEVICE_BATTERY_TEMPERATURE_VAL BT_UUID_128_ENCODE(0xf983f80d, 0x277a, 0x423a, 0xa122, 0xa37302ff7c97)

#define	BT_UUID_DEVICE BT_UUID_DECLARE_128(BT_UUID_DEVICE_VAL)

#define	BT_UUID_DEVICE_NAME BT_UUID_DECLARE_128(BT_UUID_DEVICE_NAME_VAL)

#define	BT_UUID_DEVICE_HARDWARE_VERSION BT_UUID_DECLARE_128(BT_UUID_DEVICE_HARDWARE_VERSION_VAL)

#define	BT_UUID_DEVICE_FIRMWARE_VERSION BT_UUID_DECLARE_128(BT_UUID_DEVICE_FIRMWARE_VERSION_VAL)

#define	BT_UUID_DEVICE_BATTERY_PERCENT BT_UUID_DECLARE_128(BT_UUID_DEVICE_BATTERY_PERCENT_VAL)

#define	BT_UUID_DEVICE_BATTERY_VOLTAGE BT_UUID_DECLARE_128(BT_UUID_DEVICE_BATTERY_VOLTAGE_VAL)

#define	BT_UUID_DEVICE_BATTERY_CURRENT BT_UUID_DECLARE_128(BT_UUID_DEVICE_BATTERY_CURRENT_VAL)

#define	BT_UUID_DEVICE_BATTERY_TEMPERATURE BT_UUID_DECLARE_128(BT_UUID_DEVICE_BATTERY_TEMPERATURE_VAL)

Functions
int	ble_device_service_init (pmic_sensor_status_t *status)
	Connect PMIC sensor status to Device BLE Service.

Detailed Description

This is a library to handle the BLE services device configuration. It displays the device name, hardware version, firmware version, and battery/charger information.

Author: Tyler Garcia

Version: 0.1

Date: 2025-05-06

Copyright: Copyright (c) 2025

Function Documentation

◆ ble_device_service_init()

int ble_device_service_init ( pmic_sensor_status_t * status )

Connect PMIC sensor status to Device BLE Service.

Parameters

status PMIC sensor status

Returns: int 0 if successful connection, < 0 if unsuccessful
